Amiga 500 x86 Aros project |
||
|---|---|---|
Joined:
2009/4/21 5:09 From Sweden
Group:
Member Posts:
79
 |
Somebody else that have tried to build x86 computer with a Amiga 500 case?

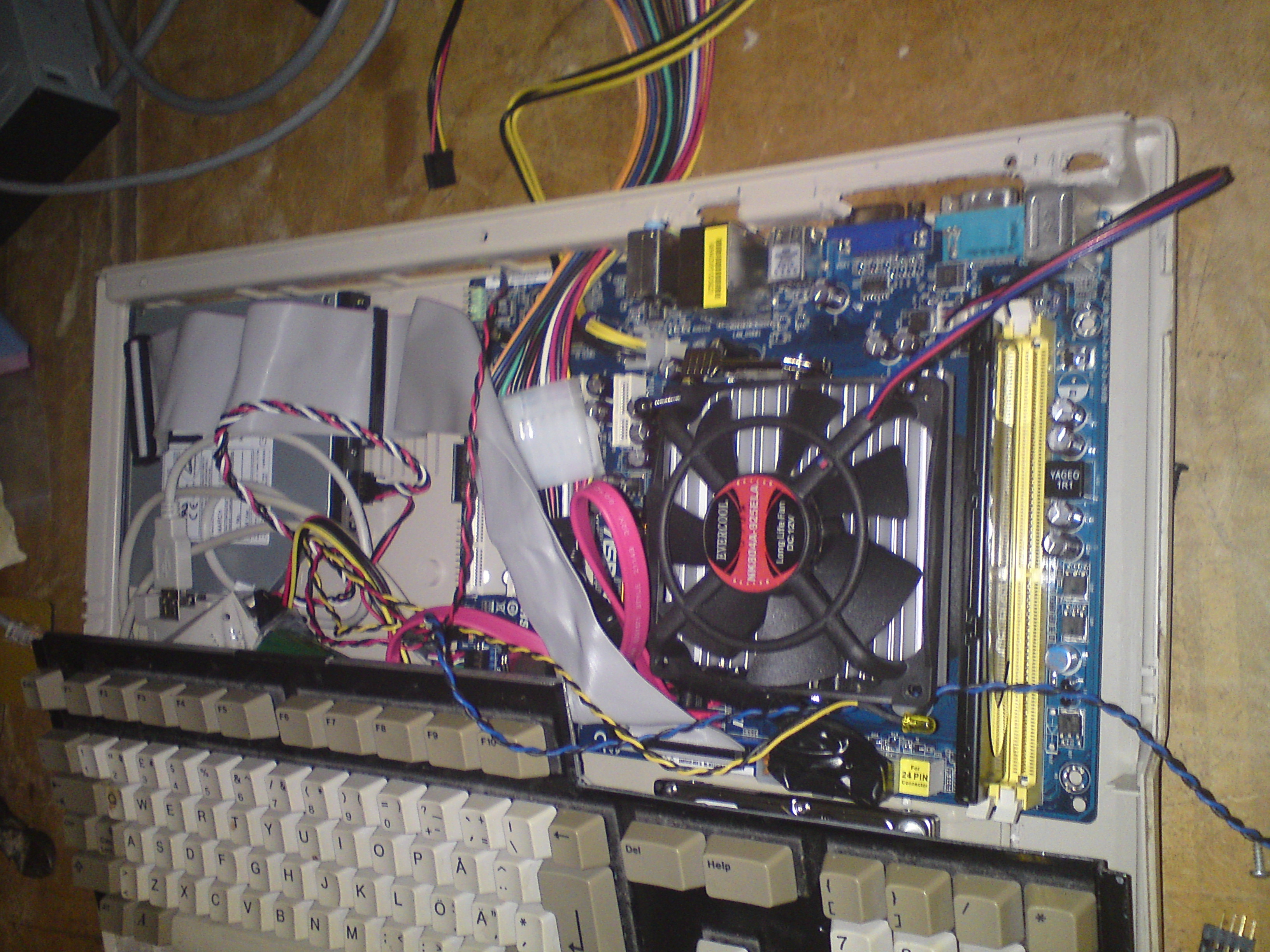

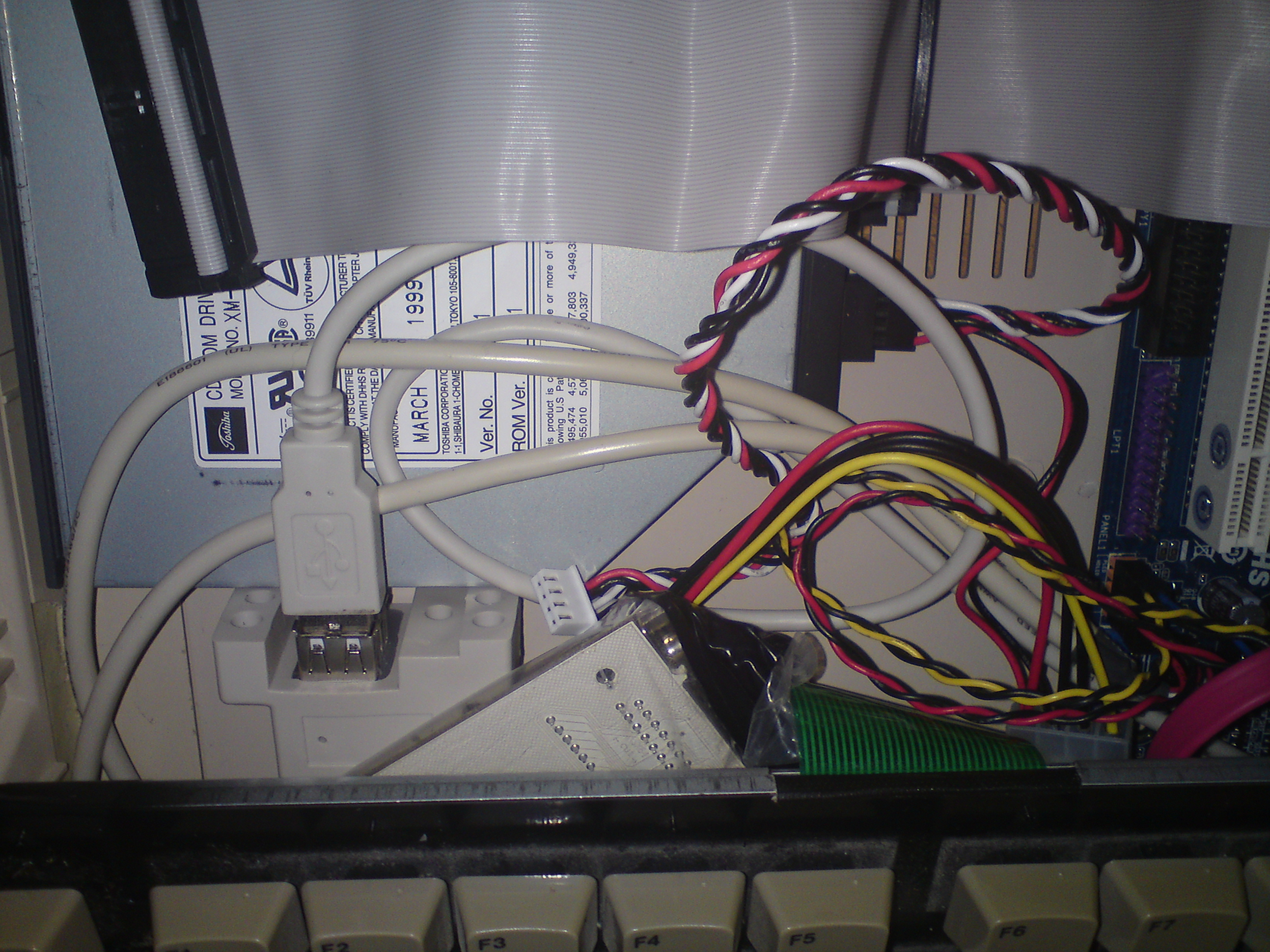

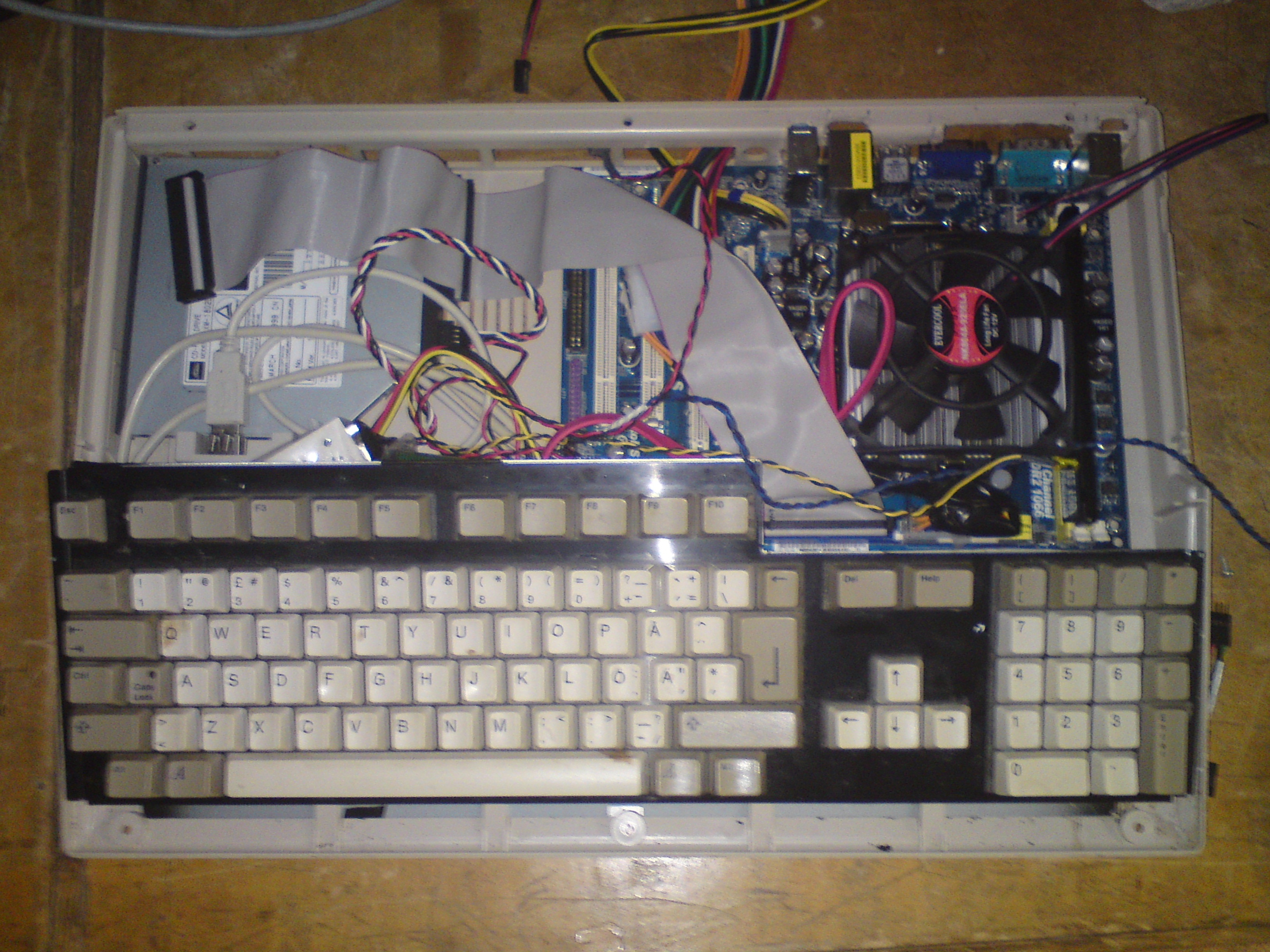

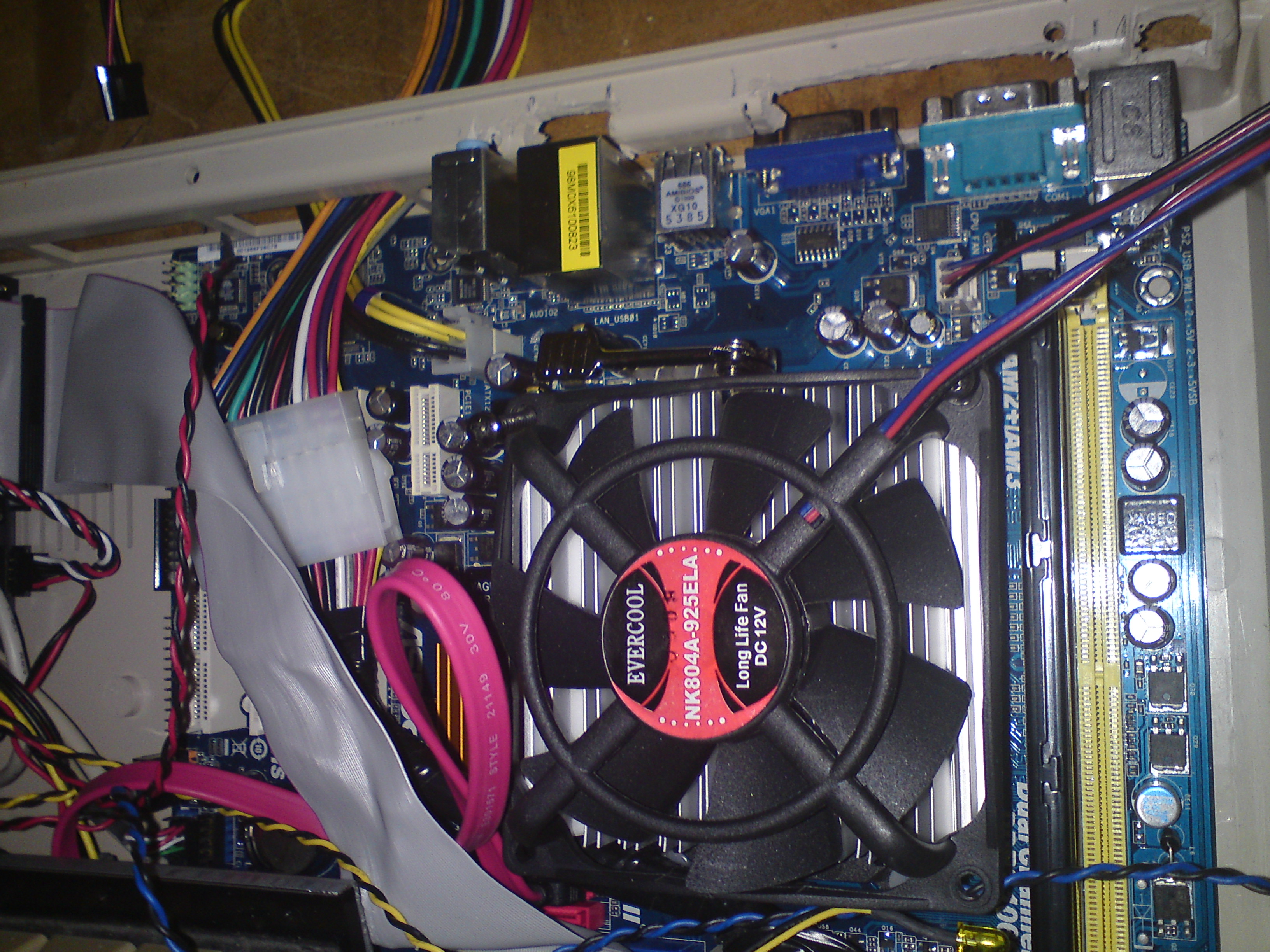

Some pictures from my project. http://www.fukt.bsnet.se/~bearsoft/amiga500_1.JPG http://www.fukt.bsnet.se/~bearsoft/amiga500_2.JPG http://www.fukt.bsnet.se/~bearsoft/amiga500_3.JPG http://www.fukt.bsnet.se/~bearsoft/amiga500_4.JPG http://www.fukt.bsnet.se/~bearsoft/amiga500_5.JPG http://www.fukt.bsnet.se/~bearsoft/amiga500_9.JPG I have not attached the hardware on this pictures... I'm thinking to run Aros on it, and some other OS.
Posted on: 2010/1/7 6:27
|
|
 Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
Joined:
2008/4/8 13:03 Group:
Member Posts:
451
|
Hmm... how are you going to connect the keyboard?
Posted on: 2010/1/7 6:37
|
|
|
_________________
My AROS native boxes: - ASUS P4PE-X/TE, P4 2.8, SB Live! SB0060, RTL8029, GeForce 5200 - HP Compaq NX7010 |
||
|
Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
|
Guest_
|
Cool, I helped a friend make an emulated 68k amiga in this way too. It was only half hearted though, he used a pc keyboard. Can you use a500 keyboards using a keyrah ?
Posted on: 2010/1/7 6:46
|
|
|
Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
|
Joined:
2009/4/21 5:09 From Sweden
Group:
Member Posts:
79
|
I'm using Keyrah with a Amiga 1200 keyboard.

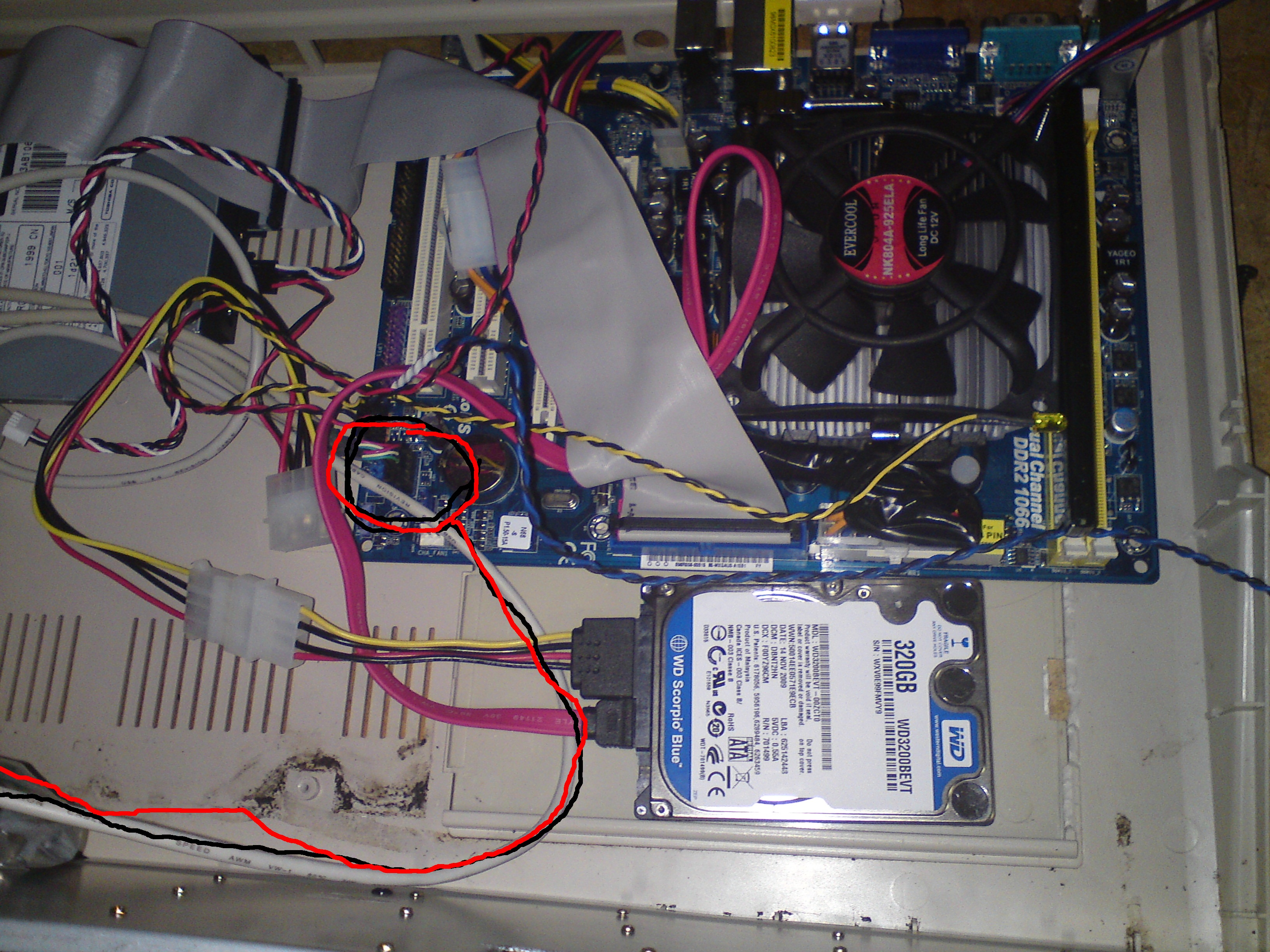

http://www.fukt.bsnet.se/~bearsoft/amiga500_9.JPG Maybe hard to see but i have connected the Keyrah to USB port on motherboard. http://www.fukt.bsnet.se/~bearsoft/amiga500_4_2.JPG I have not test if the keyboard works with Aros, but with Windows XP it works. I'm using this motherboard http://www.asrock.com/mb/overview.asp?Model=N68-S
Posted on: 2010/1/7 9:11
|
|
|
Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
|
Joined:
2009/4/21 5:09 From Sweden
Group:
Member Posts:
79
|
The motherboard works with Aros, VESA, but i didn't get the Nvidia driver to work with the graphiccard.
But i have tested it with a older AROS version than 1.2 so maybe the driver is more updated in 1.2.
Posted on: 2010/1/7 9:26
|
|
|
Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
Joined:
2004/3/30 21:57 Group:
Member Posts:
1220
|
Cool
 Post more pictures and a video when it's ready.
Posted on: 2010/1/7 13:20
|
|
|
Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
Joined:
2008/6/7 13:52 Group:
Member Posts:
2051
|
All I can say is that if somebody does that to a working A1000 I will go round and shoot them.
Posted on: 2010/1/7 14:11
|
|
|
_________________
Amiga 1000, 3000D and iMica Silent and NVidia version running latest Icaros. http://www.imica.net Please support the Amigas future, this year is 25th Anniversary lets make it special. http://www.amiga25.org |
||
|
Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
|
Joined:
2009/4/21 5:09 From Sweden
Group:
Member Posts:
79
|
Some more pictures from the project.
I have attached the hardware, intern transformer 200 watt. http://www.syntaxsociety.se/~bearsoft/Amiga500__1.JPG http://www.syntaxsociety.se/~bearsoft/Amiga500__2.JPG http://www.syntaxsociety.se/~bearsoft/Amiga500__3.JPG http://www.syntaxsociety.se/~bearsoft/Amiga500__4.JPG http://www.syntaxsociety.se/~bearsoft/Amiga500__5.JPG Some videos from the project. http://www.syntaxsociety.se/~bearsoft/Amiga500_1.MP4 http://www.syntaxsociety.se/~bearsoft/Amiga500_2.MP4 http://www.syntaxsociety.se/~bearsoft/Amiga500_3.MP4 http://www.syntaxsociety.se/~bearsoft/Amiga500_4.MP4 http://www.syntaxsociety.se/~bearsoft/Amiga500_5.MP4 I will update the project later, when I have done more on the project. Next I will try to fix the cooler to CPU, and cosmetic stuff.
Posted on: 2010/2/7 12:13
|
|
|
Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
Joined:
2004/3/29 15:59 From Tequesta FL USA
Group:
Member Posts:
1752
|
Oh, this brings back memories of fighting to upgrade my old A500. Hope this works out nicely with AROS.
Posted on: 2010/2/7 12:39
|
|
|
_________________
Dammy |
||
|
Transfer
|
|
|
Re: Amiga 500 x86 Aros project |
||
|---|---|---|
|
Joined:
2008/12/9 12:41 Group:
Member Posts:
6
|
What about the cooling? How hot does it gets?
I was thinking on something similar, but using an old Armada E500 notebook with cracked LCD. Don't have a clue about what to do with the keyboard doe.
Posted on: 2010/2/8 4:47
|
|
|
